Allied Components International
750 oHms SMD Common Mode Filter

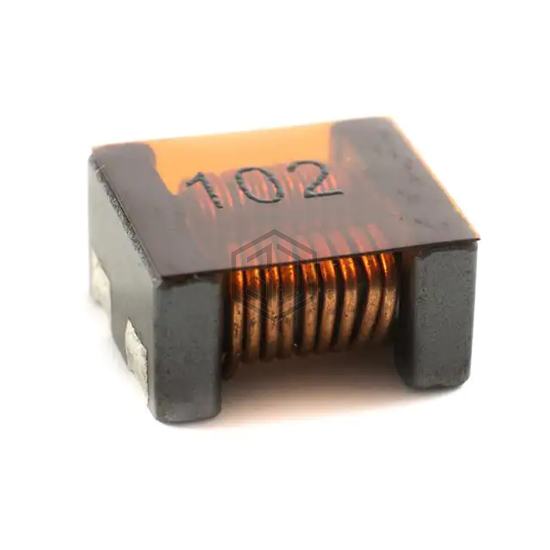

PCMF1211S-102 is a Common Mode Chokes manufactured by Allied Components International. 750 oHms SMD Common Mode Filter. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating - dc 125V, package / case Horizontal, 4 PC Pad.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 8A |
| DC Resistance (DCR) (Max) | 14mOhm |
| Voltage Rating - DC | 125V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.472" L x 0.425" W (12.00mm x 10.80mm) |
| Height (Max) | 0.252" (6.40mm) |
| Package / Case | Horizontal, 4 PC Pad |
Submit your RFQ for PCMF1211S-102 and get a quote within 24 hours.
