Allied Components International

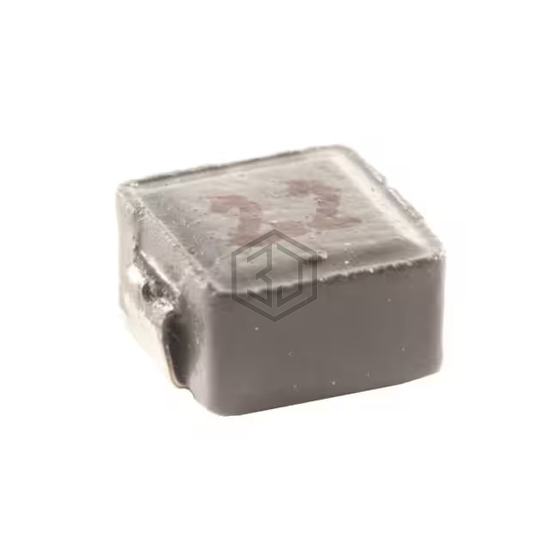

.68uH +/-20% Pwr Choke Hi-Curr.
PCHC320H-R68M is a Fixed Inductors manufactured by Allied Components International. .68uH +/-20% Pwr Choke Hi-Curr.. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.5 A.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | 7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 29mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.138" L x 0.126" W (3.50mm x 3.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for PCHC320H-R68M and get a quote within 24 hours.
