Allied Components International

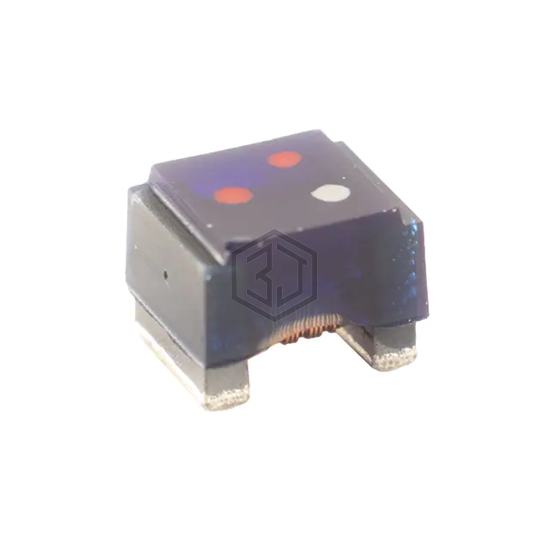

8.2uH +/-5% Ferrite Core Chip
LS10-8R2J-RC is a Fixed Inductors manufactured by Allied Components International. 8.2uH +/-5% Ferrite Core Chip. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, package / case 1210 (3225 Metric), size / dimension 0.118" L x 0.098" W (2.99mm x 2.50mm).
In Stock: 56
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 8.2 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 550mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.8Ohm Max |
| Q @ Freq | 40 @ 7.9MHz |
| Frequency - Self Resonant | 90MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.118" L x 0.098" W (2.99mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
Submit your RFQ for LS10-8R2J-RC and get a quote within 24 hours.
