Allied Components International

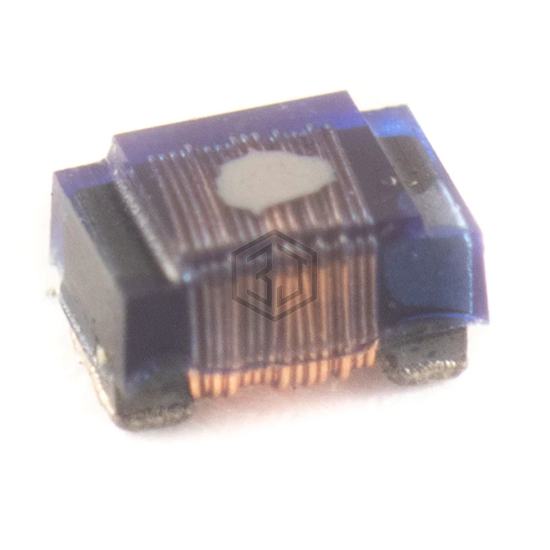

.47UH +/- 5% SMD INDUCTOR
LS03-R47J-RC is a Fixed Inductors manufactured by Allied Components International. .47UH +/- 5% SMD INDUCTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.05 A.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 1.05 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 620mOhm Max |
| Q @ Freq | 17 @ 7.9MHz |
| Frequency - Self Resonant | 720MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.071" L x 0.049" W (1.80mm x 1.25mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
Submit your RFQ for LS03-R47J-RC and get a quote within 24 hours.
