Allied Components International

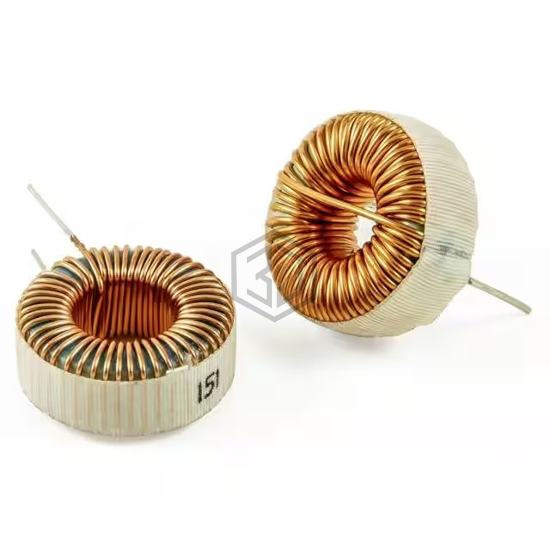

33uH +/-30% H.M. Toroidal Choke
HTC230LL-330L-RC is a Fixed Inductors manufactured by Allied Components International. 33uH +/-30% H.M. Toroidal Choke. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Horizontal, No Base, 2 PC Pin, current rating (amps) 13 A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 33 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 13 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Horizontal, No Base, 2 PC Pin |
| Supplier Device Package | Horizontal, No Base, 2 PC Pin |
| Size / Dimension | 1.280" Dia (32.51mm) |
| Height - Seated (Max) | 0.650" (16.51mm) |
