Allied Components International

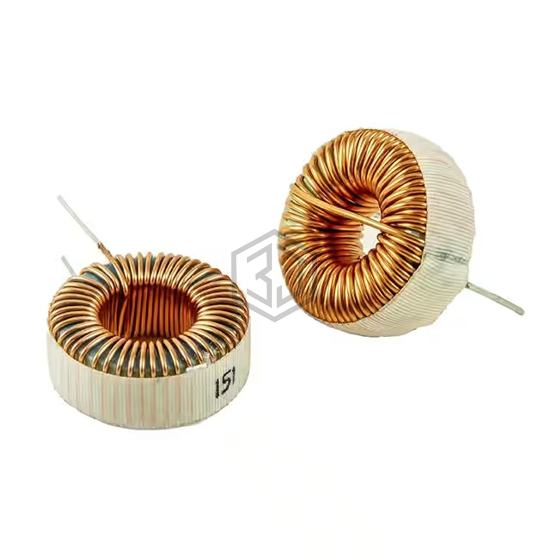

68UH 30% HRZ MNT TOROIDAL CHOKE
HTC220LL-680L-RC is a Fixed Inductors manufactured by Allied Components International. 68UH 30% HRZ MNT TOROIDAL CHOKE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Horizontal (Open), current rating (amps) 7.6 A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 68 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 7.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 22mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | Radial |
| Size / Dimension | 1.100" Dia (27.94mm) |
| Height - Seated (Max) | 0.550" (13.97mm) |
Submit your RFQ for HTC220LL-680L-RC and get a quote within 24 hours.
