10H 20% FLAT WIRE SMD POWER IN

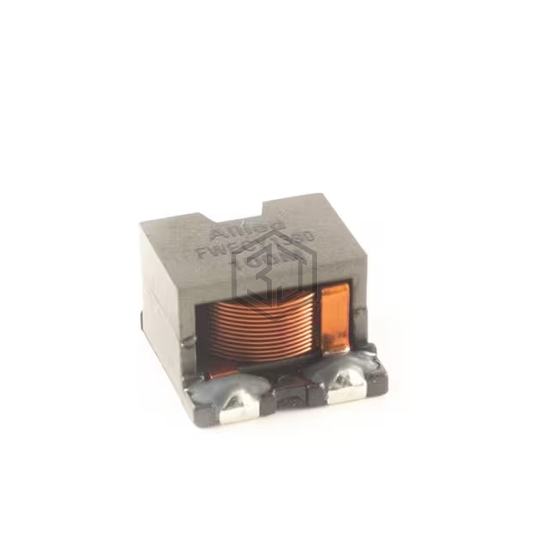

FWECY1390-100M is a Fixed Inductors manufactured by Allied Components International. 10H 20% FLAT WIRE SMD POWER IN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 9.2 A.
In Stock: 390
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.2 A |
| Current - Saturation (Isat) | 12A |
| Shielding | Shielded |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 26.9MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.512" L x 0.492" W (13.00mm x 12.50mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
Submit your RFQ for FWECY1390-100M and get a quote within 24 hours.
