Allied Components International
270nH +/-5% Ceramic Core Chip

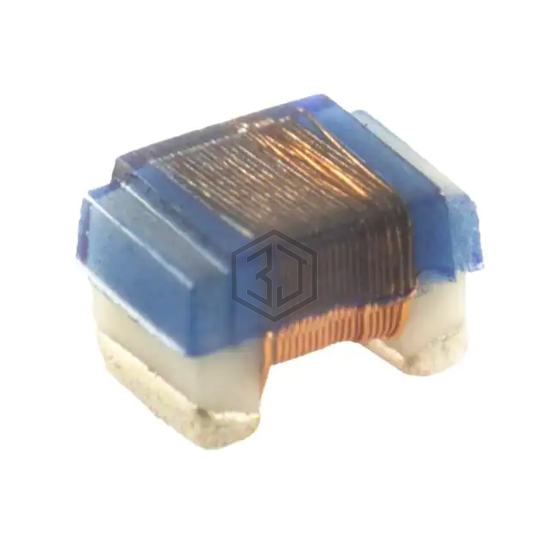

CC05-270NJ-RC is a Fixed Inductors manufactured by Allied Components International. 270nH +/-5% Ceramic Core Chip. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), size / dimension 0.090" L x 0.068" W (2.29mm x 1.73mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 270 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 350mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1Ohm Max |
| Q @ Freq | 48 @ 250MHz |
| Frequency - Self Resonant | 650MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
Submit your RFQ for CC05-270NJ-RC and get a quote within 24 hours.
