Allied Components International

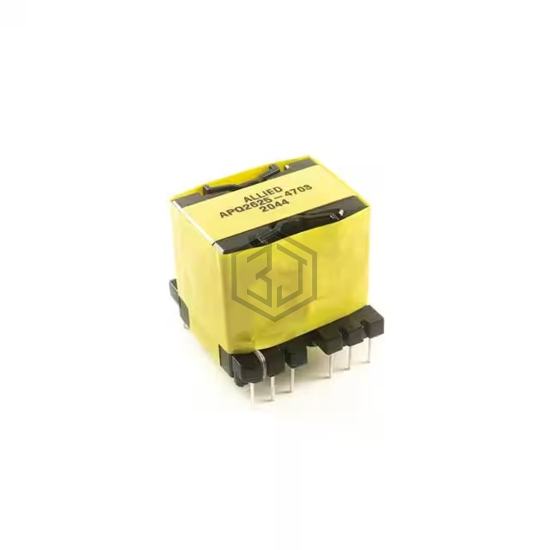

160UH, PQ2625 LC Resonant Induct
APQ2625-4703 is a Fixed Inductors manufactured by Allied Components International. 160UH, PQ2625 LC Resonant Induct. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Vertical 12 Leads, current rating (amps) 7 A.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 160 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 75mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical 12 Leads |
| Supplier Device Package | Radial |
| Size / Dimension | 1.220" L x 1.142" W (31.00mm x 29.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
Submit your RFQ for APQ2625-4703 and get a quote within 24 hours.
