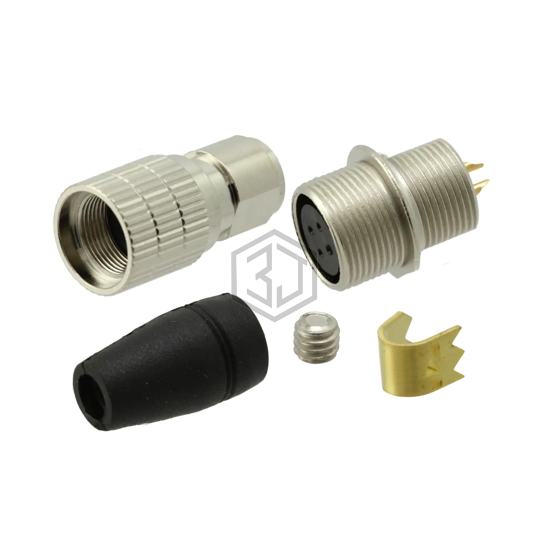

CONN PLUG FMALE 4POS SOLDER CUP
SD-PNL04-FFTAL-SX0-000 is a Circular Connectors manufactured by Adam Tech. CONN PLUG FMALE 4POS SOLDER CUP. Key specifications: mounting type Free Hanging (In-Line), color Black, Silver, termination Solder Cup, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 98
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Shell Size - Insert | M8-4 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Black, Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Cable Clamp, Strain Relief |
| Shielding | Unshielded |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Cable Opening | 0.197" (5.00mm) |
| Operating Temperature | - |
Submit your RFQ for SD-PNL04-FFTAL-SX0-000 and get a quote within 24 hours.
