FIXED IND 22UH 620MA 350MOHM SMD

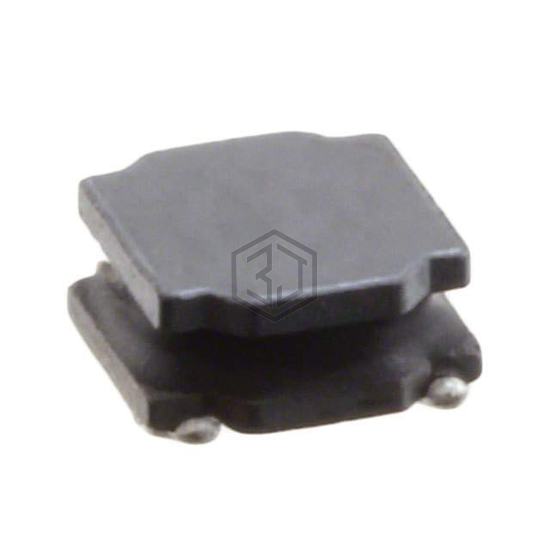

ASPI-4020S-220M-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 22UH 620MA 350MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 620 mA.
In Stock: 4,936
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 620 mA |
| Current - Saturation (Isat) | 1.05A |
| Shielding | Shielded |
| DC Resistance (DCR) | 350mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 15MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for ASPI-4020S-220M-T and get a quote within 24 hours.
