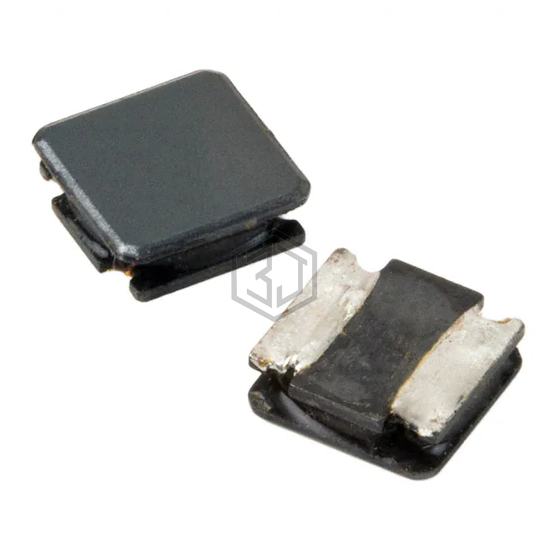

FIXED IND 2.2UH 3.7A 20 MOHM SMD
ASPI-0628-2R2N-T1 is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 2.2UH 3.7A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 120°C, package / case Nonstandard, current rating (amps) 3.7 A.
In Stock: 5,244
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.7 A |
| Current - Saturation (Isat) | 4.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -25°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 0628 |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for ASPI-0628-2R2N-T1 and get a quote within 24 hours.
