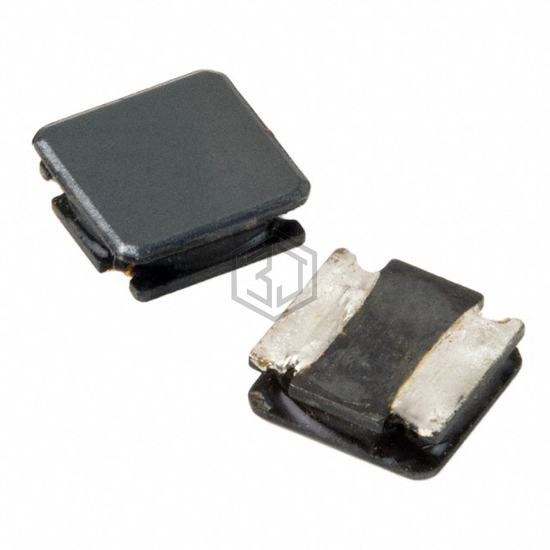

FIXED IND 22UH 1A 170 MOHM SMD
ASPI-0615FS-220M-T2 is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 22UH 1A 170 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 120°C, package / case Nonstandard, current rating (amps) 1 A.
In Stock: 19,976
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | 1.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 170mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -25°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
Submit your RFQ for ASPI-0615FS-220M-T2 and get a quote within 24 hours.
