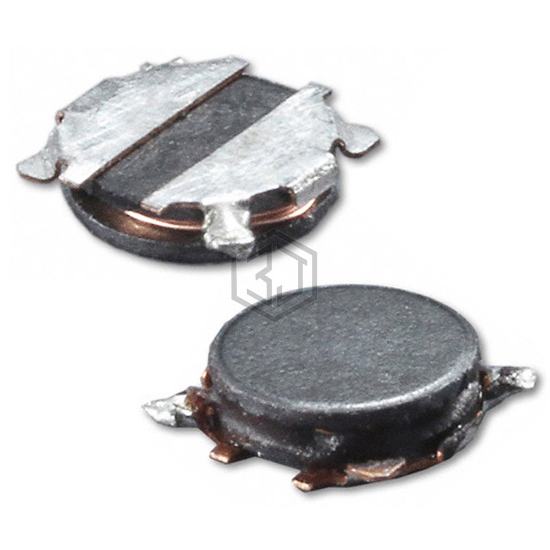

FIXED IND 22UH 290MA 1.93OHM SMD
ASPI-0309-220M-T4 is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 22UH 290MA 1.93OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, package / case Nonstandard, current rating (amps) 290 mA.
In Stock: 1,165
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 290 mA |
| Current - Saturation (Isat) | 300mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.93Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -30°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
