FIXED IND 3.3UH 2.8A 13 MOHM TH

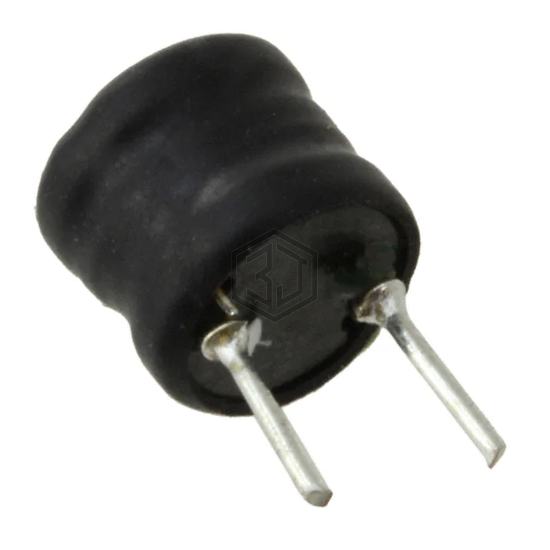

AIUR-05-3R3M is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 3.3UH 2.8A 13 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case Radial, Vertical Cylinder, current rating (amps) 2.8 A.
In Stock: 326
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.8 A |
| Current - Saturation (Isat) | 4.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 13mOhm Max |
| Q @ Freq | 10 @ 7.96kHz |
| Frequency - Self Resonant | 38MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 7.96 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.335" Dia (8.50mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
