FIXED IND 560NH 450MA 550MOHM SM

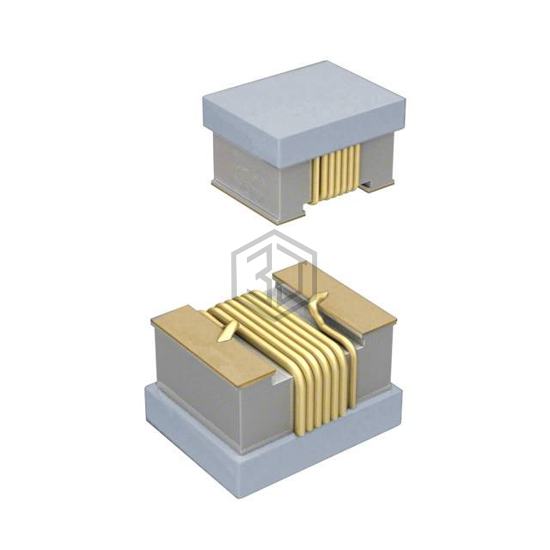

AISM-1210-R56M-T is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 560NH 450MA 550MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1210 (3225 Metric), current rating (amps) 450 mA.
In Stock: 959
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Ferrite |
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 450 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 550mOhm Max |
| Q @ Freq | 30 @ 25.2MHz |
| Frequency - Self Resonant | 180MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
