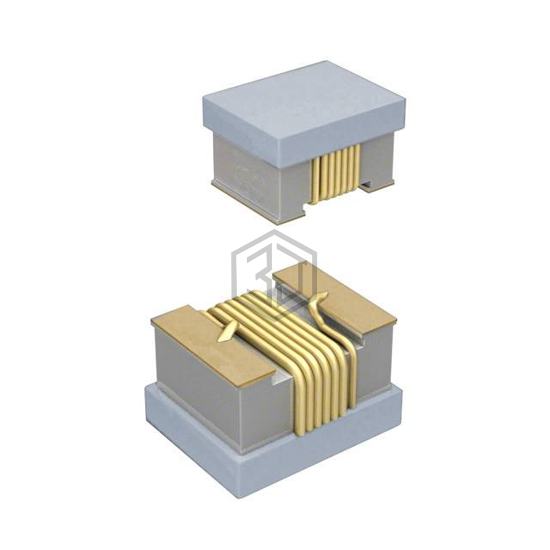

FIXED IND 6.8UH 480MA 1.1OHM SMD
AISC-1210HS-6R8K-T2 is a Fixed Inductors manufactured by Abracon LLC. FIXED IND 6.8UH 480MA 1.1OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1210 (3225 Metric), current rating (amps) 480 mA.
In Stock: 3,990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 480 mA |
| Current - Saturation (Isat) | 500mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.1Ohm Max |
| Q @ Freq | 10 @ 1MHz |
| Frequency - Self Resonant | 55MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.051" (1.30mm) |
Submit your RFQ for AISC-1210HS-6R8K-T2 and get a quote within 24 hours.
